商品介紹
|

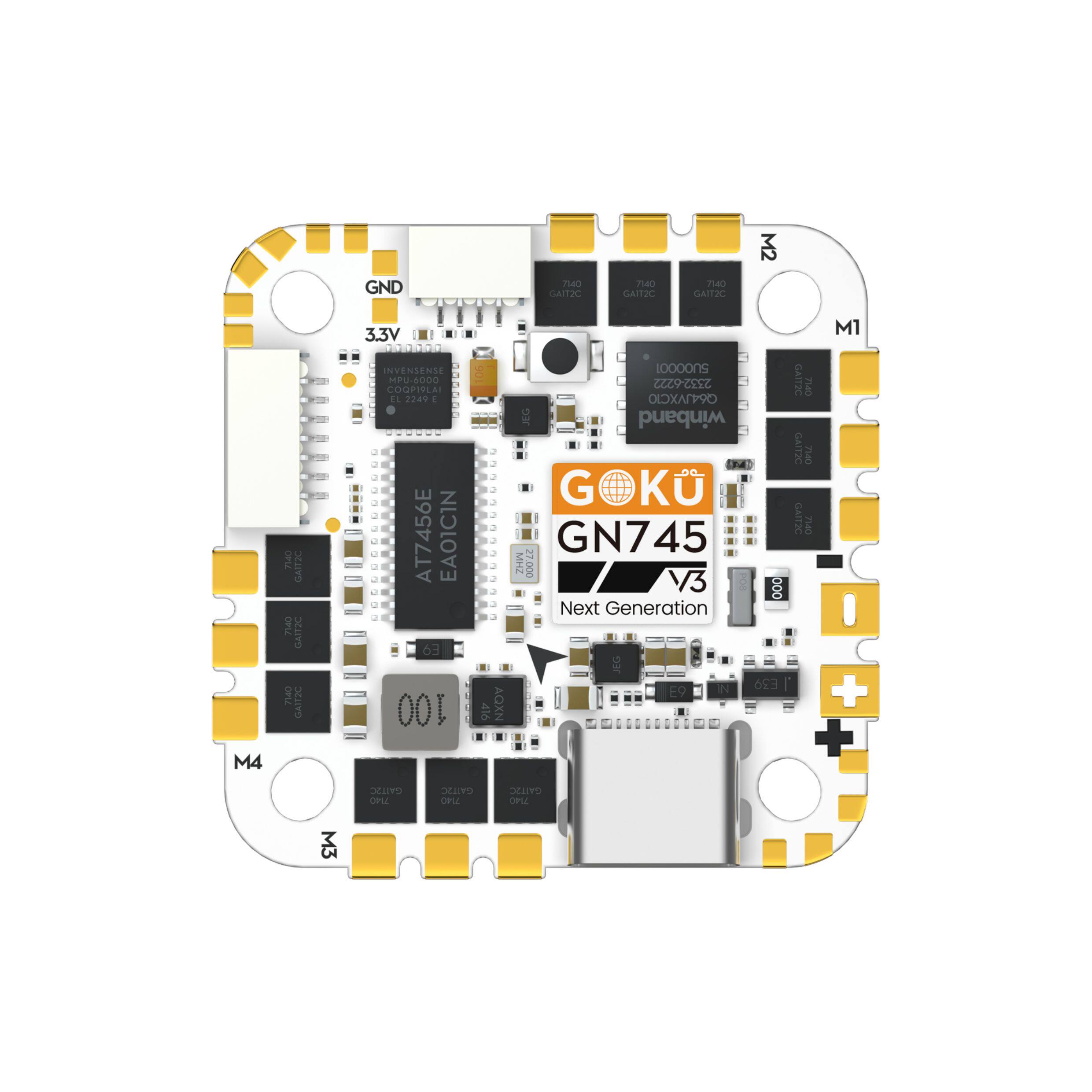

GOKU GN745 45A AIO 32bit V3 |
GOKU GN745 45A AIO BL_32 (MPU6000 ) V1.2 |
|
|
Firmware: |
STM32F745 BGA |
STM32F745 BGA |
|
Continuous Current: |
45A-50A MAX |
40A-45A MAX |
|
BEC: |
5V 2A |
5V 2A/9V 2A |
|

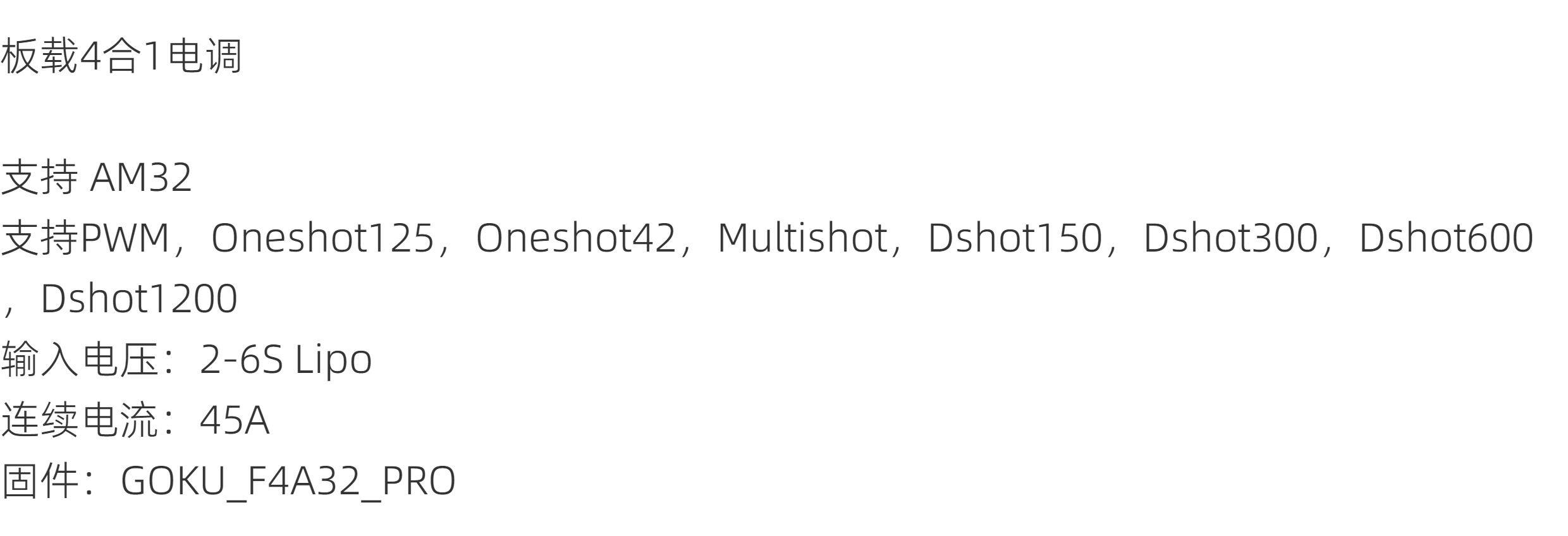

ESC |
AM32/BL32 |
BLHELI_32 |
|
Flash: |
1MB |
1MB |
| Black Box | 16mb | 16mb |
|
Barometer: |
DPS310/SPL06 |
DPS310/SPL06 |
|
Gyro: |
ICM42688/MPU6000 |
MPU6000 |
|
Motor: |
M1-M4 OUTPUT I2C: SCL/SDA |
M1-M4 OUTPUT I2C: SCL/SDA |
|
Uarts: |
1,2,3,4,5,6,7 |
1,2,3,4,5,6 |
|
Plug Uart ports |
YES |
\ |
|
connector： |
Type-C |
Micro |
|
OSD: |
AT7456E |
AT7456E |
|
Hole: |
25.5*25.5-3mm |
25.5*25.5-3mm |
|
Size: |
33.5x33.5mm |
33.5x33.5mm |
|
Weight: |
9.4g |
8.5g |
