【CADDXFPV】Walksnail Avatar GT Kit
Walksnail Avatar GT Kit 2W 大功率遠距離傳輸夜視固定翼高清圖傳
NT$5,460~NT$7,000
商品編號:
WN12-2W14B Avata
供貨狀況:
尚有庫存
加入最愛
此商品 「 最高 」可以折抵紅利
0
點
(約等於 NT$0 )
商品介紹
規格說明
| Specification | |
| Camera | |
| Model | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ sensor |
| Resolution | 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Weight | 9.5g |
| Dimensions | 19*19*24mm |
| Coaxial Cable | 140mm |
| Gyroflow | supported |
| VTX | |
| Model | Avatar GT |
| Communication Frequency | 5.725-5.850 GHz |

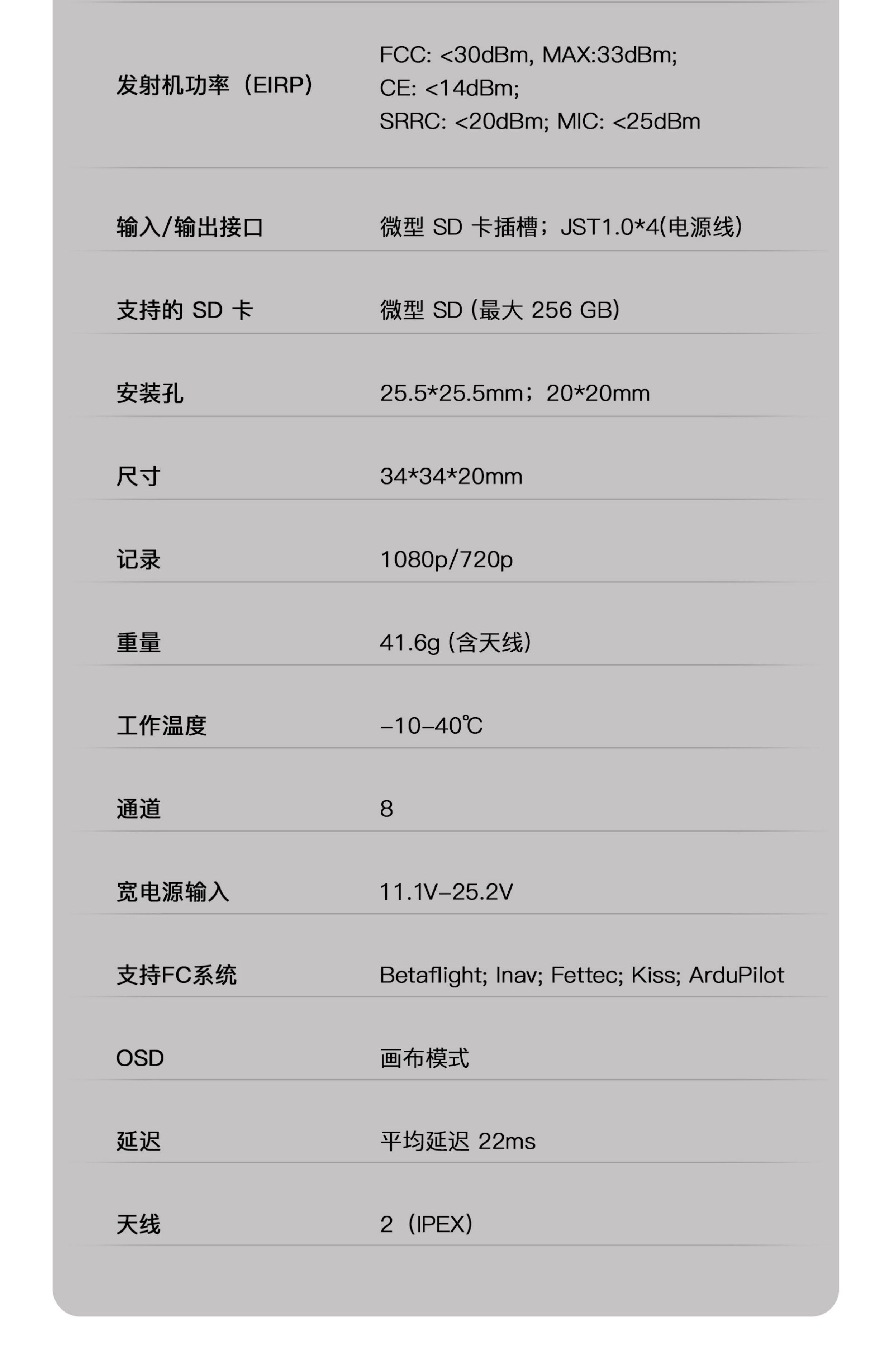

| Transmitter Power (EIRP) | FCC: <30dBm, MAX:33dBm ; CE: <14dBm; SRRC: <20dBm; MIC: <25dBm |
| I/O Interface | Micro SD card slot; JST1.0*4(power cable) |
| Supported SD Cards | Micro SD (up to 256 GB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Dimensions | 34*34*20mm |
| Recording | 1080p/720p |
| Weight | 41.6g (Antenna included) |
| Operating Temperature | -10-40℃ |
| Channels | 8 |
| Wide Power Input | 11.1V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPilot |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Antenna | 2(IPEX) |
